4816

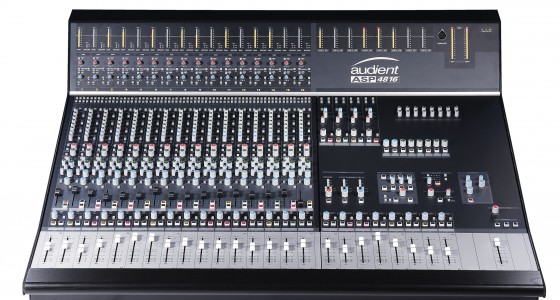

         ASP4816提供了一个紧凑的,价格合适的大型录音调音台。音频David大师设计的¥模拟电路设计,ASP4816是制作工作室和教育设施不可或缺的核心设备。价位比AVID C24略高,但是却是纯正的模拟录音台及混音台,不但可以用于录音,也可以用于后期混音,并与Protools一道进行各种后期制作。

         每个输入通道均有著名的Audient A类前置放大器和4段均衡器 - 按上千台ASP8024的经验制造而成,用户不必再添置外置放大器和EQ。控制台有40个推子,16路BUS总线,6个辅助编组,2个专用的CUE发送,4个立体声返回,立体声总线VCA压缩以及内置的监听控制。

特性:

  • INLINE结构 - 每个通道上双输入
  • 共40个音量推子
  • 48路线路输入
  • 16路Audient 高保真话放
  • 话放通道均有带前 带后双推子
  • 带前带后推子功能可翻转
  • 16通道可分拆4段EQ
  • 16路录音总线结构
  • 6路辅助总线,2组返听总线
  • VCA立体声总线压缩
  • 立体声综合监听控制器(可扩展为环绕声)

Frequency Response
Mic input to Mix output <+0,-0.3 dB 20Hz-20kHz @ 6-40 dB gain.
Line input to Mix output <+0,-0.3 dB 20Hz-20kHz @ 0 dB gain.

T.H.D. and Noise at +20 dB Output
Mic XLR input to any output <0.005% at 1kHz
Line input to any output <0.005% at 1kHz
Tape input to any output <0.003% at 1kHz

Noise
Mic EIN (20-20kHz, 150R source) <-127.5 dBu
Bus noise (no inputs routed) <-93 dBu
Bus noise (36 inputs routed) <-78 dBu

Mic C.M.R.R.
70 dB (Min gain) 75 dB (Max gain)

Crosstalk and Mute Attenuation at 1kHz
Short fader Mute >90 dB
Long fader Mute >90 dB
Mix assign >90 dB
Bus assign >90 dB

Maximum Input
Mic >+21 dBu (min gain)
Line >+30dBu (min gain)
Insert return >+21dBu

Maximum Output Into 2 kΩ
Mix output >+26 dBu
Bus output >+26 dBu
Aux output >+26 dBu
Insert send >+20 dBu
Monitor, Studio, F/B outputs >+20 dBu
